Quenched And Tempered Steel From Sweden Manufacturer SSAB With 450 Class Of HBW For Recycling Components
Quenched And Tempered Steel overviews
® 450 is an abrasion-resistant steel with a nominal hardness of 450 HBW. ® 450 combines good bendability and weldability with an option for guaranteed impact toughness (® 450 Tuf).
The products can be used in many different components and structures that are subject to wear. ® 450, with an extra 50 Brinell hardness over our 400 grade, provides better dent and abrasion resistance as well as longer wear life, so you can achieve even greater savings.
Except our extensive stock on site . we also provide Products value-added services , which include Cutting <Laser cutting , Plasma cutting , Thermal cutting , Water jet cutting etc >, Bending service Welding service and Machining services .
| Material | |
| Grades | 400 | 500 |
| 450 | 600 |
| Features | Wear Plate | Tough |
| Abrasion Resistant | Extremely Formable |
| Versatile | |
| Form | Plate / Sheet / Bar |
| Thickness | 2mm thru 130 thick |
| Length | Up to 16000 MM |
| Width | Up to 3500 mm |
| Process | Plasma Cutting | Shape Burning |
| Track Torch | Drilling & Tapping |
| Radiograph | Machining |
| Weight | Contact us for details |
| Tensile Strength | 130 psi |
| Intended Applications | Heavy Mining Equipment | Drip Pans |
| Repair Bucket Work | Conveyor Bottoms |
| Replacement Parts | Custom Chutes |
| Sumps | |
| Industry Focus | Coal Mining | Factories |
| Rock Quarry | Heavy Equipment |
450 Sheet / plate / Technical Datasheet , Dimension Range
Mechanical Properties
| Grade | Thickness
(mm) | Hardness 1)
(HBW) | Tesnile strength
Rm
(MPa),
guaranteed | Typical yield
strength
(MPa) |
| 450 CR sheet | 0.7 - 2.10 | 425 - 4752) | 1370 - 1600 | 1250 |
| 450 sheet | 2.0 - 8.0 | 425 - 475 | - | 1250 |
| 450 plate | 3.2 - 80.0 | 425 - 475 | - | 1250 |
| 450 plate | 80.1 - 103.0 | 410 . 475 | - | 1250 |
| 450 plate | 103.1 - 130.0 | 390 . 475 | - | 1250 |
® wear plate is through-hardened. Minimum core hardness is 90 % of the guaranteed minimum surface hardness.
Chemical Composition Of 450 Plates
| C *) | Si *) | Mn *) | P | S | Cr *) | Ni *) | Mo *) | B *) |
| Max % | Max % | Max % | Max % | Max % | Max % | Max % | Max % | Max % |
| 0.26 | 0.7 | 1.6 | 0.025 | 0.01 | 1.40 | 1.50 | 0.6 | 0.005 |
The steel is grain refined. *) Intentional alloying elements.
450 Maximum Carbon equivalent CET (CEV)
| Thickness mm | -5 | 5 - (10) | 10 - (20) | 20 - (40) | 40 - 80 | (80) - 130 |
| CET (CEV) Max | 0.37 (0.48) | 0.38 (0.49) | 0.39 (0.52) | 0.41 (0.60) | 0.43 (0.74) | 0.41 (0.67) |
| CET (CEV) Typical | 0.29 (0.39) | 0.33 (0.45) | 0.36 (0.48) | 0.38(0.56) | 0.38 (0.61) | 0.39 (0.64) |
Dimension Range
| Name | Thickness | Width |
| 450 Sheets | 3.2~8mm | 600~1500mm |
| 450 plates | 4~130 mm | 600~3350mm |
| 450 Bars | | |
other specification and Dimension is available upon request
400 plate Value -added processing services
With Our wide range of Value-added processing services , can be welded, bent,
cut and machined usingrun-of-the-mill techniques and tools. You get the superior performance
of without having to invest in special equipment and training.
Preheating
The right preheat and interpass temperature for each welding situation will optimize the result.
Welding
Any conventional welding method can be used for welding these steels to any type of weldable steel.
Download ® Welding instruction
Cutting
wear plate can very well be cut using both cold and thermal cutting methods.
Download ® Cutting instruction
Bending
is eminently well suited for cold bending.
Download ® Bending instruction
Machining
can be machined with high speed steel or cemented carbide tools.
Why Choose Us
Xzh steel is one of the major suppliers , wholesaler , stockholder of products. Our skilled work force has many years’ experience of working with this material. Beside our inventory ,We have location just beside two major SSAB warehouse which
gurantee our quick delivery time .
We can offer customers a fast turnaround due to our extensive stock in all grades and thicknesses. We can offer expert advice to discuss your wearplate requirements and help in the design optimisation stage of the project.Due to our extensive manufacturing capabilities we can processor up to 700HB, press parts up to 14.6m in length and waterjet cut to avoid a Heat Affected Zone (HAZ). Withour whole supply chain integration , As we provide wide range of cut to size service , we take
advantage of all material and extend our supply chain to Wear parts .
450 Product Application
Recycling Components for Tough Demands
Recycling processes like the fragmentizing of waste places enormous demands on equipment. And if the materials involved, wear too quickly it can also mean enormous costs. To stay productive and competitive it is vital to use materials that stand up to the abuse. wear plate is the solution.
GARBAGE TRUCKS
400 or 450. With the increased hardness of , lighter trucks with higher payloads can be produced. For packer blades inside garbage trucks, 450 or 500 is used.
LINER PLATES
500, 550 or 600. can be used to line the walls of the sorting pockets.
GRAPPLES
450 or 500. can significantly increase the life of the grapple and other gripping equipment.
SHREDDERS
500, 550 or 600. can also be used in shredders. The specific steel grade depends on the sorted material and the frequency of tough, hard-crushed objects in the machine. The high toughness of steels provides shredders with a substantially higher resistance against cracking and cleavages.
GRANULATOR KNIVES
600 or Extreme. Granulator knives are used for the fragmentation of waste especially plastic, tires, cables and rubber waste. The high toughness of steels provides substantially higher resistance against chipping.
PRISMATIC KNIVES
Extreme or 600. For the fragmentation of waste, especially plastics, tires, cables and rubber waste, can be used. The high toughness of steels provides substantially higher resistance against chipping.
HAMMER MILLS
500, 550 or 600. Hammers are used for the fragmentation of waste and minerals. The high toughness of steels provides substantially higher resistance against cracking.
SIEVES/SCREEN
500 or 450. Roll-bended sieves are most commonly used in recycling as both a sorting and fragmenting facility at the same time. The high toughness of steels provides a substantially higher resistance against cracking.
CONVEYOR BELT
450 or 500. plates can be used to line conveyor belts and be used in moving chains.
CONTAINERS
400 or 450. For use in the sides and floor of containers, wear plate combines toughness with high hardness, meaning more resistance to impacts and dents, and a higher wear resistance.
450 Product Display Package , Delivery
FAQ
Q: Would you provide samples For free?
A: Yes . with on stock specification We provide samples For Free . Freight charge collect
Q: What information should i provide to source for the right products ?
A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc
Q: What are the shipping ports?
A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you
can choose other ports according to your needs.
Q: About product prices?
A: Prices vary from period to period due to cyclical changes in the price of raw materials.
Q: How long does your delivery time take?
A: In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely
large or special circumstances occur.
Q: Can I visit your location?
A: Of course, we welcome customers from all over the world to visit our factory. However, some
of the plants are not open to the public.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified
products will be destroyed.
Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation
wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q: What is your working time?
A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00,
we will reply to your inquiry during the next working day.
plate 400 synonyms
armor plate , 400 Bhn Sheets, Ar 400 Plates, Bis 400 Wear , 400 Hbw Abrasion Resistant Stee Plates, 400 Bhn Abrasion , Ar 400 Sheets, Hb 400 Bhn Plate, Abrex 400 Pressure Vessels Plate, Low-temperature Steel Plates, BHN 400 Wear , BHN 400 Wear Plates, BHN 400 Liner Plates, BHN 400 Abrasion , Bis 400 Wear , Abrex 400 Heavy Section Plate, Hb 400 Plate, Hb 400 Plate, BHN 400 Bhn Plate, Sumihard 400 Pressure Vessel Steel Plates, Xar 400 BHN Wear Plates, Creusabro 400 Steel Plates, amor 400 Pressure Vessel Steel Plates, Hb 400 Bhn Plate, BHN 400 High Tensile Plate, BHN 400 Pressure Vessels Plate, BHN 400 Abrasion , Boiler Steel 400 Bhn Plates, BHN 400 Container Plate, A 400 - Hard Wearing Plate, BHN 400 abrasion resistant wear plates, Material BHN 400 Wear , BHN 400 Abrasion , Ar 400 Clad Plate, Dillidur 400 Wear Plate Material, BHN 400 Hb Clad Steel Plate, BHN 400 Brinel Plate, BHN 400 Wear Clad Steel Plate, BHN 400 wear resistant liner plates, Abrex 400 Low Temperature Plate, BHN 400 Coated Plate, BHN 400 Abrasion , BHN 400 Material Wear , Abrex 400 Wear Plate, BHN 400 Wear-resistant plates, BHN 400 Boiler Plate, BHN 400 Steel Plate, EN 10051 BHN 400 Plate, BHN 400 Low Temperature Plate, BHN HB, BHN 400 Heavy Section Plate, Abrex 400 Wear Plate, Abrex 600 Plate, BHN 400 Wear Clad Steel Plate, Abrex 400 Plate, BHN 960 Plate, BIS Plate 450 Plate, BIS Plate 320 Plate, BHN 400 Steel Plate, 400 Hb Wear , BHN 700 Plate, 400 Hb Clad Plate, AZO 400 Plate, BHN 1100 Plate, BHN 800, BHN 1300, BHN 900 Plate, DOX 500 Plate, BHN 400 Material Wear, DOX 450 Plate, Steel BHN 400 Plate, BHN 650 Plate, Dillidur 400 Wear Plate Material, BIS Plate, HB 400 / AB, Abrex 500 Plate, BHN 400 Wear and abrasion resistant steel, Abrex 450 Plate.
Product Tags:
|
|

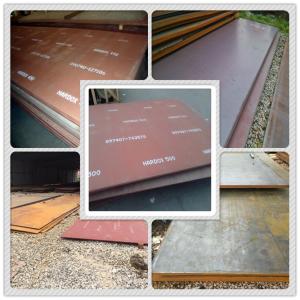

450 Welding EN 10051 Abrasion Resistant Steel Plates Images
|
